Overview

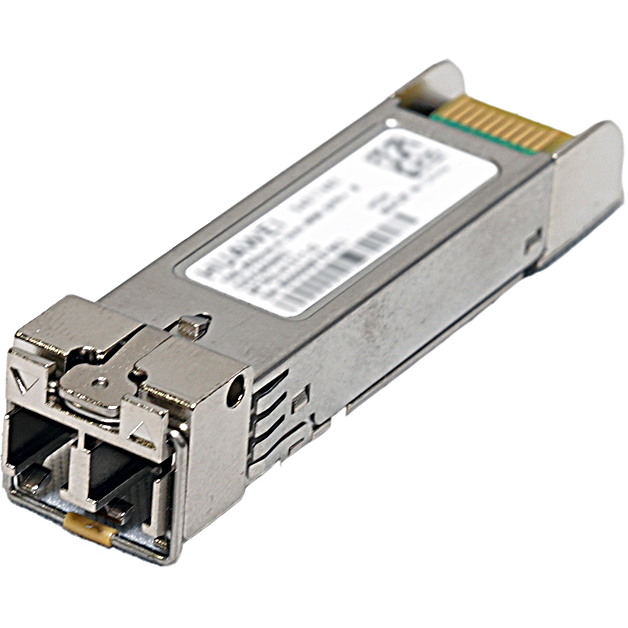

The Huawei OSX010000 is a high-performance 10G SFP+ optical transceiver designed for long-distance communication over single-mode fiber. It is widely used in enterprise networks, data centers, and backbone connections for stable and high-speed data transmission.

Key Features

• 10G High-Speed Transmission
  Supports data rates up to 10 Gbps, ideal for enterprise and ISP networks.
• Up to 10 km Transmission Distance
  Optimized for single-mode fiber (SMF), providing reliable long-range connectivity.
• SFP+ Form Factor
  Compact, hot-pluggable design ensures easy installation and high port density.
• 1310 nm Wavelength
  Designed for efficient long-distance transmission with minimal signal loss.
• LC Duplex Connector
  Standard LC interface for secure and stable fiber connections.
• Digital Diagnostic Monitoring (DDM)
  Enables real-time monitoring of performance parameters like temperature and optical power.

Performance & Specifications

• Data Rate: 10 Gbps
• Standard: 10GBASE-LR
• Form Factor: SFP+
• Fiber Type: Single-Mode (SMF)
• Connector: Duplex LC
• Distance: Up to 10 km
• Wavelength: 1310 nm
• Operating Temperature: 0°C to 70°C

Design & Benefits

The OSX010000 is built for reliable uplink connections between switches, routers, and core network devices. It provides:

• Stable performance for enterprise and ISP networks
• Cost-effective long-distance fiber connectivity
• Easy scalability for growing infrastructure

This module is perfect for inter-building connections, campus networks, and data center uplinks where consistent performance and reliability are critical.

Ideal For

• Enterprise Networks & Core Switching
• Data Center Interconnection (DCI)
• Campus & Inter-Building Links
• Telecom & ISP Infrastructure
