Huawei Access Point AP160

Huawei eKitEngine AP160 Access Point

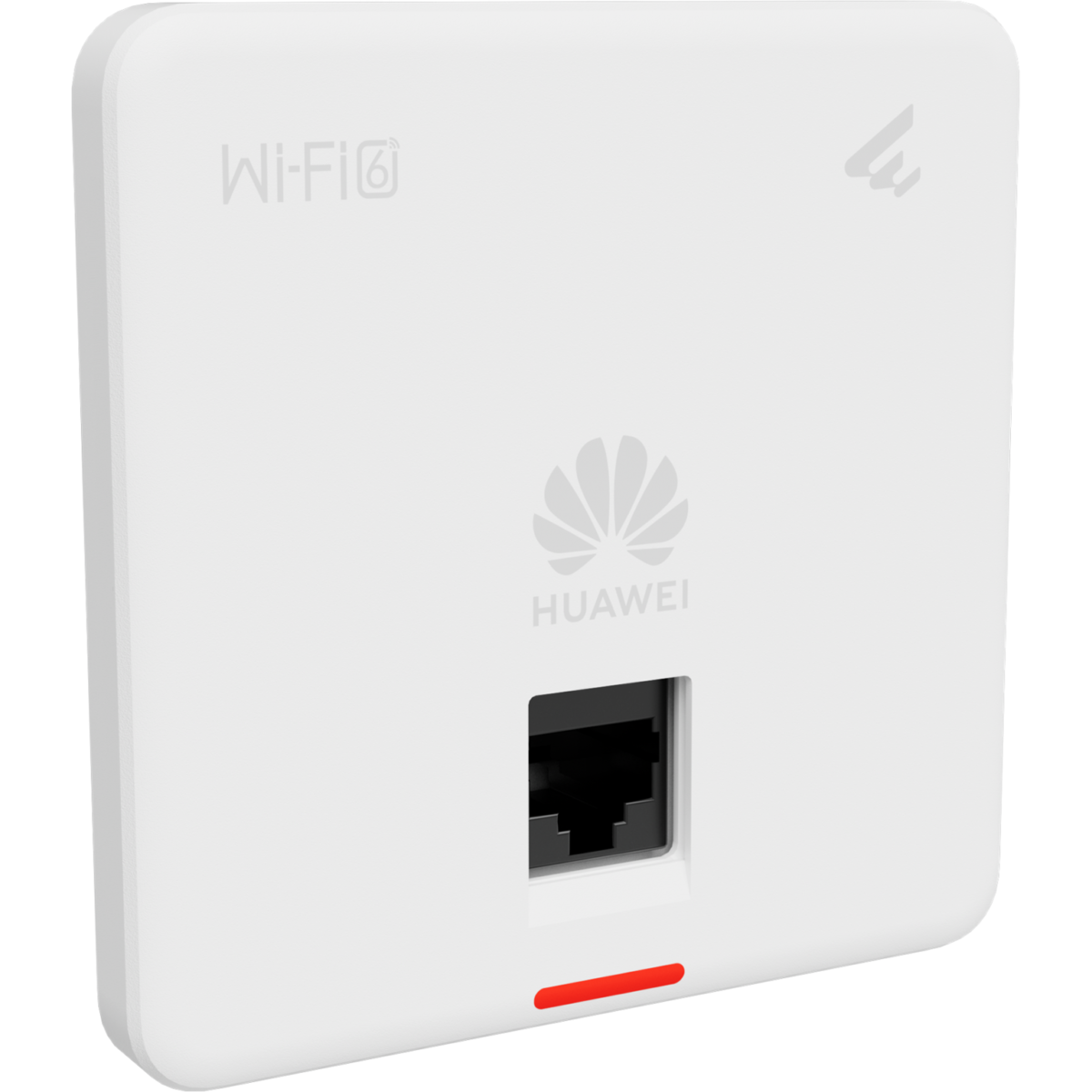

The Huawei AP160 is a compact Wi-Fi 6 wall-plate access point designed for high-performance indoor wireless coverage. With its ultra-slim design and powerful dual-band performance, it is ideal for hotels, offices, and enterprise environments that require reliable and scalable connectivity.

Key Features

• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Dual Band: 2.4 GHz (2×2) + 5 GHz (2×2)
• Max Data Rate: Up to 1.775 Gbps (575 Mbps + 1.2 Gbps)
• Antenna: Built-in smart antennas for optimized coverage
• Ports:

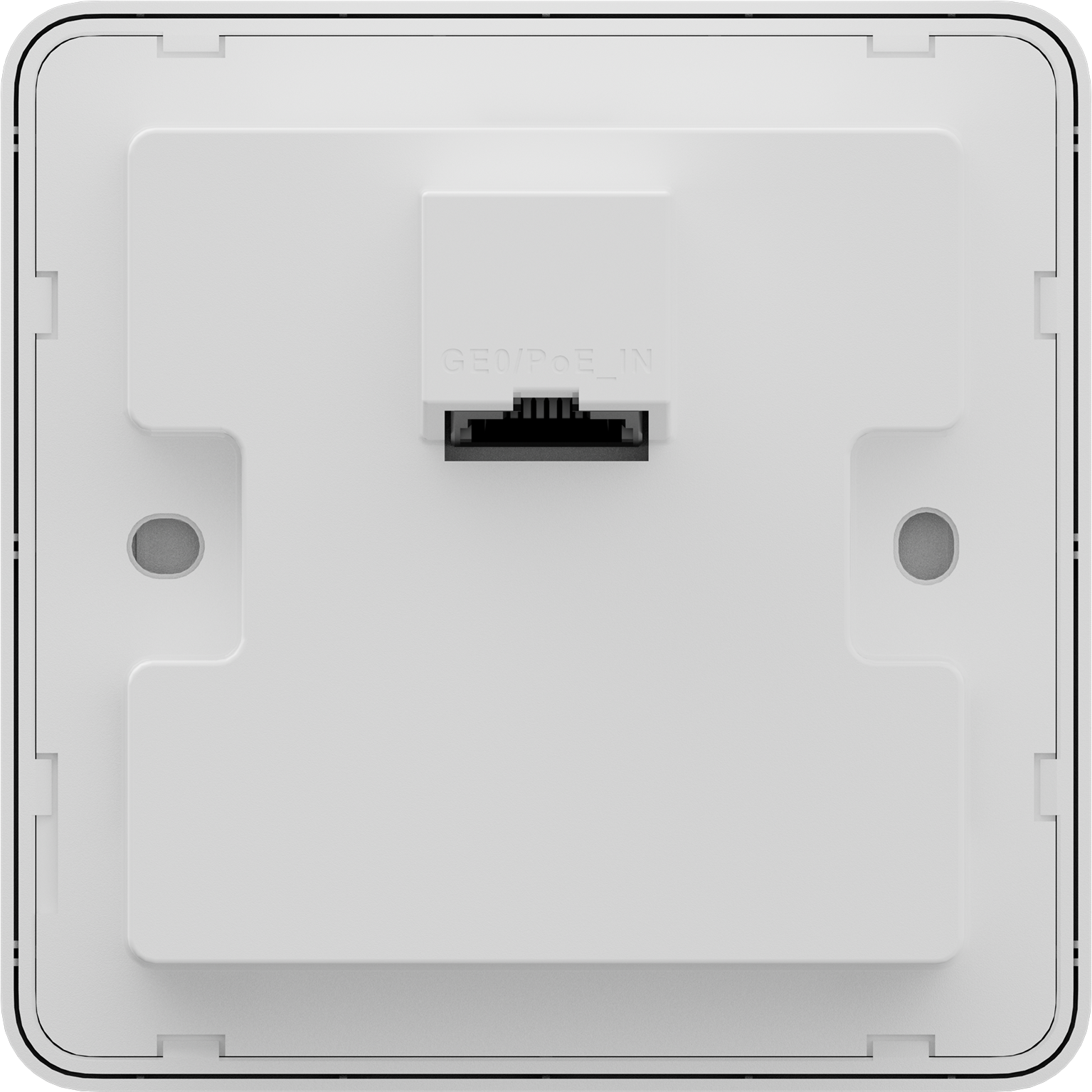

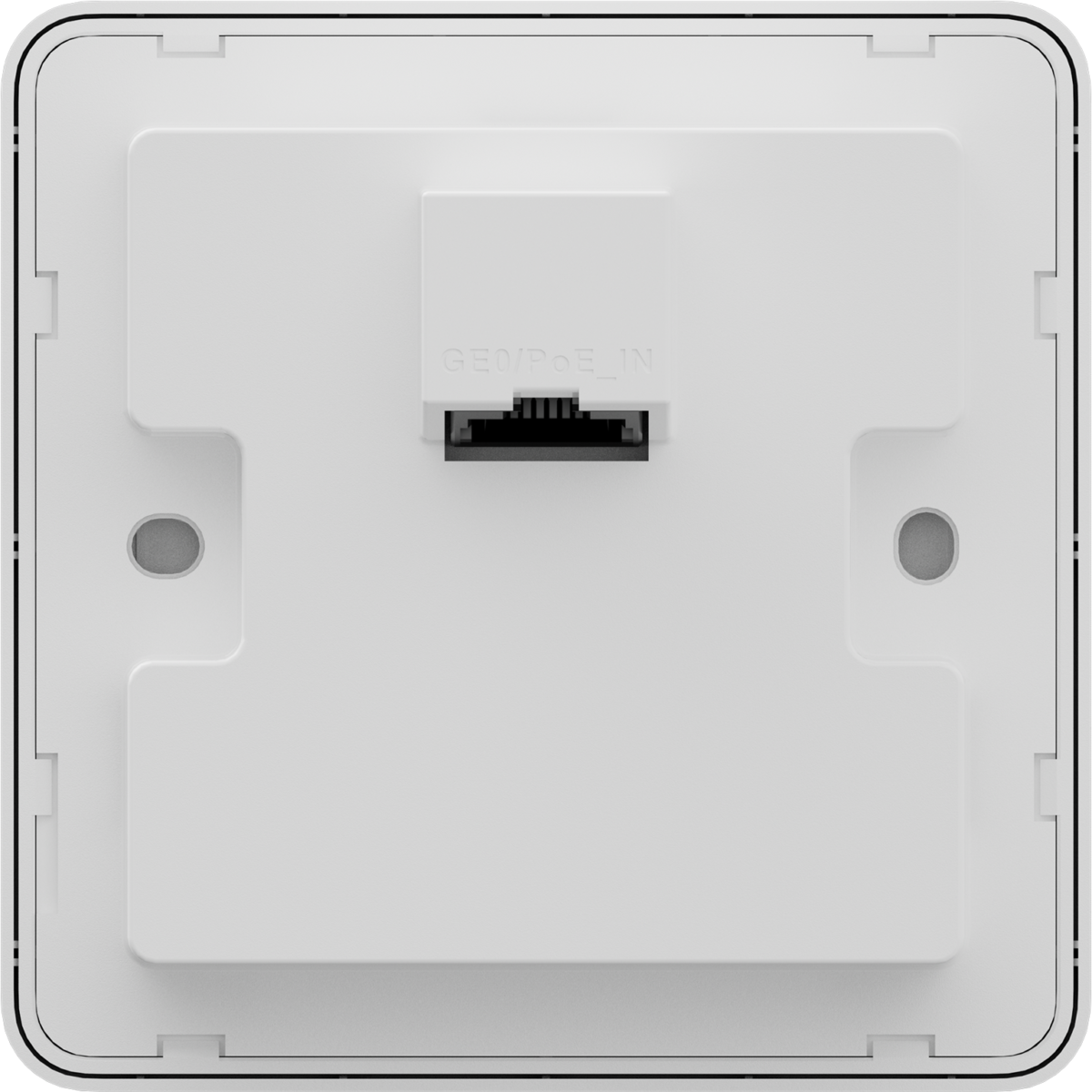

  • 1 × GE uplink (PoE-in)
  • 1 × GE downlink
• Power Supply: PoE (IEEE 802.3af)
• Max Power Consumption: ~9.1W

Performance & Capacity

• Supports MU-MIMO & OFDMA for efficient multi-user performance
• Recommended for ~48 users, supports up to 128 devices
• Provides stable, high-speed wireless connectivity with low latency
• Smart antenna technology dynamically adjusts signal strength

Design & Installation

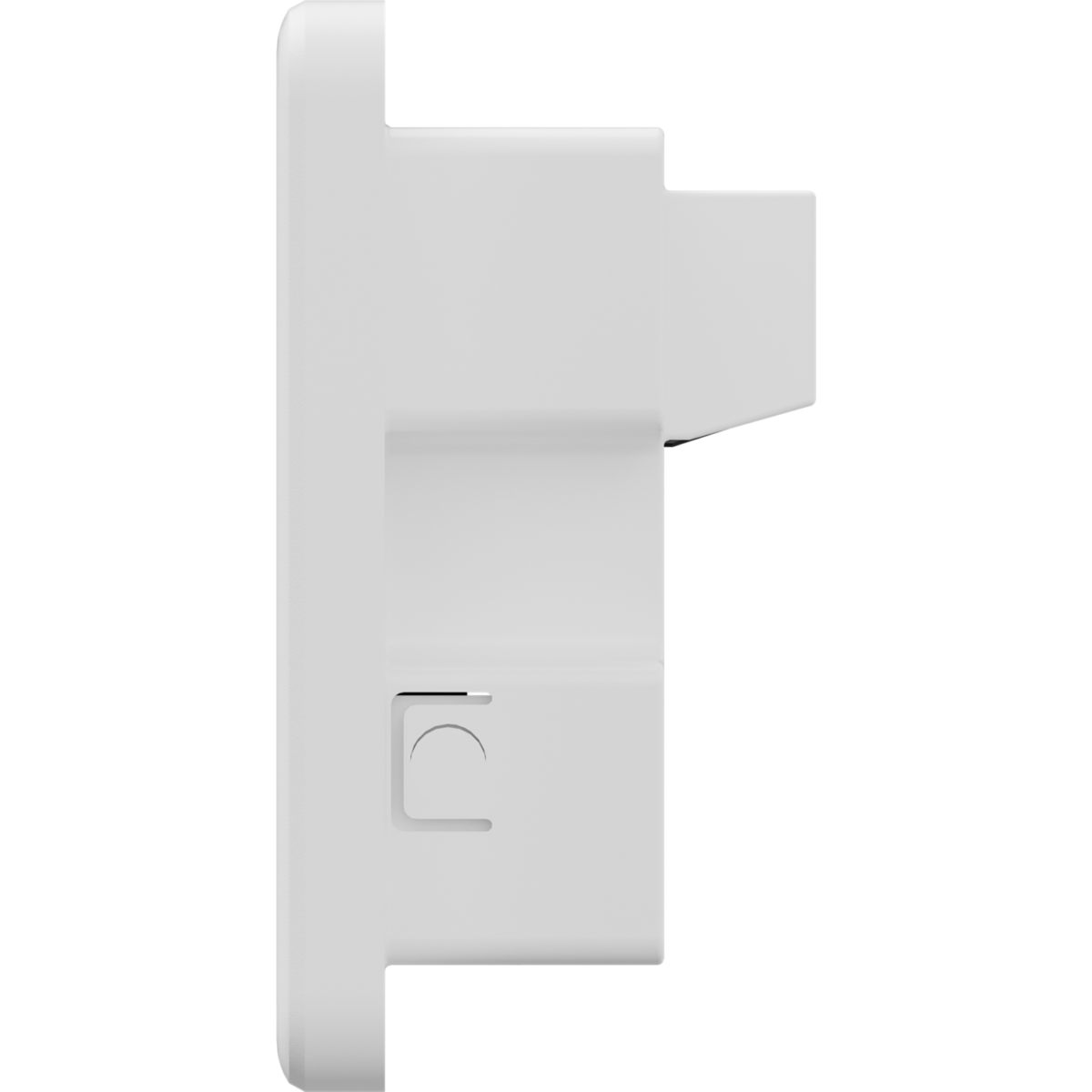

• Ultra-thin wall plate design (8 mm panel) for seamless installation
• Standard 86 × 86 mm size fits wall junction boxes
• Lightweight (~0.14 kg) and compact for space-saving deployment
• Ideal for room-based installations (hotels, dorms, offices)

Applications

• Hotels & hospitality (per-room Wi-Fi)
• Offices & enterprise networks
• Clinics & healthcare facilities
• Campus and residential buildings

Design & Reliability

The Huawei AP160 combines modern aesthetics with enterprise-grade performance. Its slim wall-mounted design blends seamlessly into interiors while delivering high-speed, stable wireless connectivity for dense environments
