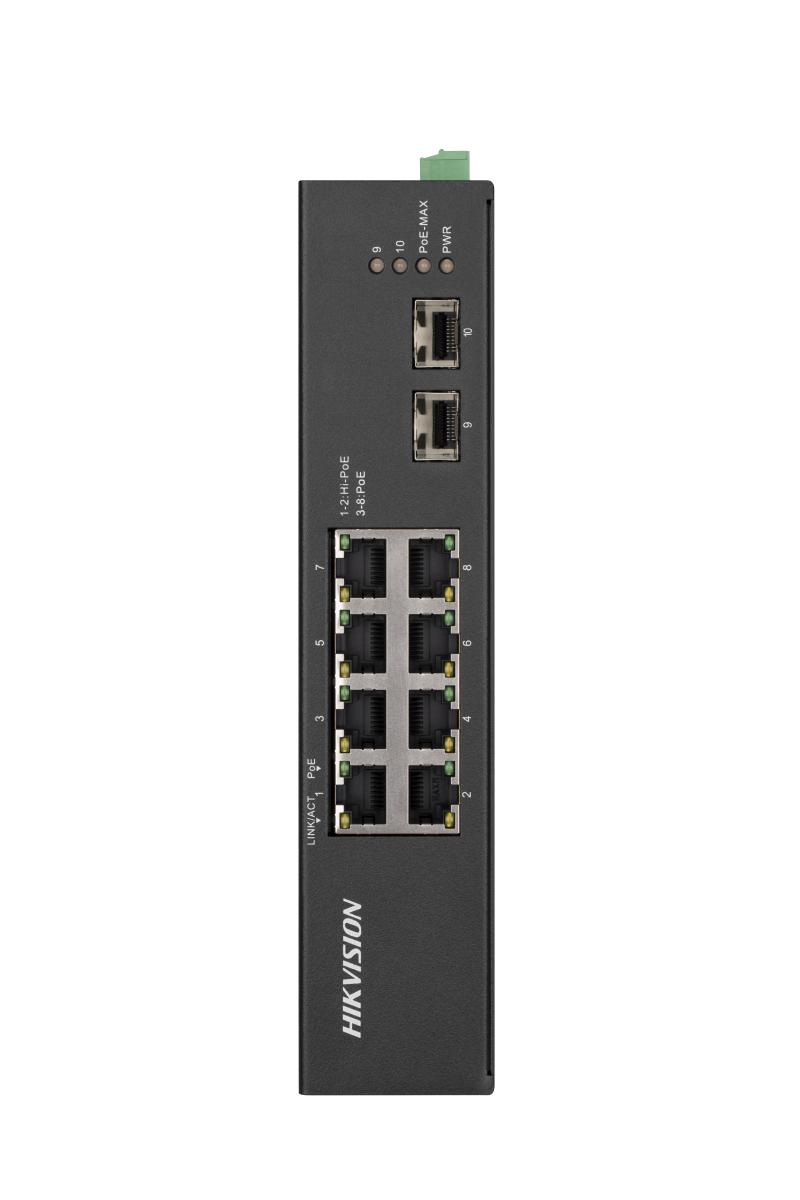

Hikvision DS-3T0510HP-E/HS(O-STD)
8 Port Gigabit Unmanaged Harsh
POE Switch
6 × gigabit PoE RJ45 port, 2 × gigabit Hi-PoE RJ45 port and 2 × gigabit SFP
fiber optical port.
IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 90 W PoE output). IEEE
802.3at/af standard for PoE ports (Max. 30 W PoE output).
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
standard.
6 kV surge protection for PoE ports. Up to 300 m long-range
transmission.
PoE watchdog to auto detect and restart the cameras that do not respond.
Port isolation to improve network security.
Wire-speed forwarding.
Wider temperature (-30 °C to 65 °C) design.
Store-and-forward switching. Solid high-strength metal shell.
Reliable fan-free design.
Available on backorder
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
Description
Hikvision DS-3T0510HP-E/HS(O-STD) 10-Port Gigabit Hi-PoE Switch
Industrial-Grade Gigabit Hi-PoE Switch for Advanced Surveillance
The Hikvision DS-3T0510HP-E/HS is a high-performance PoE switch built for demanding surveillance and industrial environments, delivering Gigabit speed, high-power PoE, and exceptional durability for 24/7 operation.
🔹 Key Features
✔️ 8 PoE Ports + 2 Uplink RJ45 Ports
✔️ Gigabit Ethernet (10/100/1000 Mbps)
✔️ Supports IEEE 802.3af / at / bt (Hi-PoE)
✔️ Up to 60W per PoE port (ideal for PTZ cameras)
✔️ Total PoE Budget: up to 150W
✔️ Long Range Mode up to 300 meters
✔️ Industrial-grade rugged design
✔️ 6KV surge protection
✔️ Efficient heat dissipation system
🔹 Performance & Network
- Switching Capacity: 20Gbps
- Packet Forwarding Rate: 14.88 Mpps
- MAC Address Table: 4K
- Store-and-Forward switching
- Plug & Play (no configuration required)
🔹 Ideal Applications
PTZ and AI-powered IP cameras
Industrial and factory environments
Outdoor surveillance systems
Warehouses and logistics centers
Key Advantage (HS Series)
The HS series is designed for harsh and outdoor environments, offering:
✔️ Stable operation in extreme temperatures
✔️ Reliable high-power PoE for demanding devices
✔️ Durable construction for long-term use
Why Choose This Switch?
✔️ High PoE power for professional setups
✔️ Built for 24/7 continuous operation
✔️ Reliable performance in tough conditions
✔️ Easy deployment with no configuration
Perfect For
If you need a rugged, high-power Gigabit PoE switch for large surveillance systems, this model is a strong and reliable choice.
