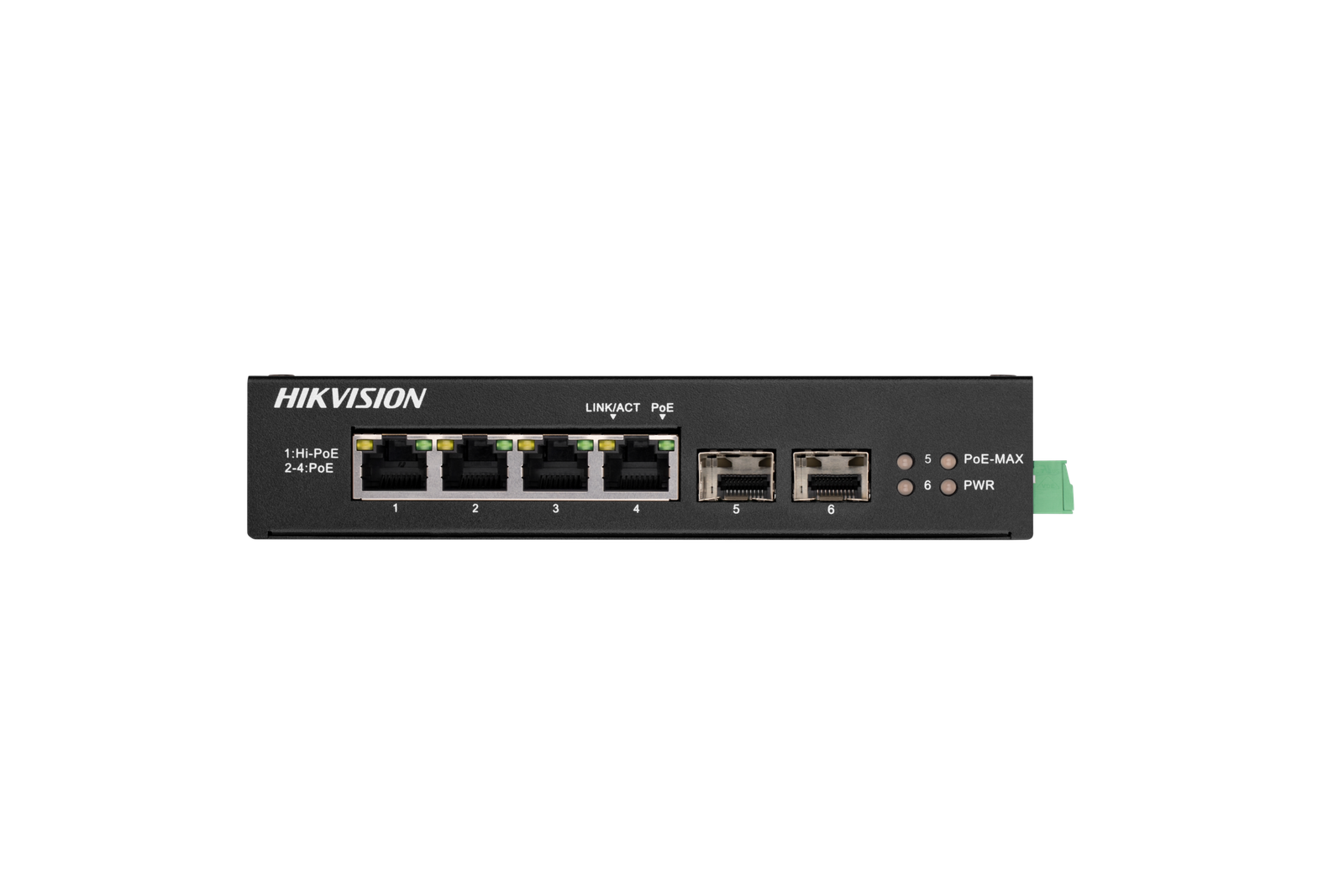

Hikvision DS-3T0506HP-E/HS(O-STD)
4 Port Gigabit Unmanaged Harsh
POE Switch
3 × gigabit PoE port, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber
optical port.
IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output). IEEE
802.3at/af standard for PoE ports (Max. 30 W PoE output).
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
standard.
6 kV surge protection for PoE ports. Up to 300 m long-range
transmission.
PoE watchdog to auto detect and restart the cameras that do not respond.
Port isolation to improve network security.
Wire-speed forwarding.
Wider temperature (-30 °C to 65 °C) design.
Store-and-forward switching. Solid high-strength metal shell.
Reliable fan-free design.
Available on backorder
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
Description
Hikvision DS-3T0506HP-E/HS(O-STD) 6-Port Gigabit Industrial Hi-PoE Switch
Industrial Hi-PoE Switch for Harsh Environments
The Hikvision DS-3T0506HP-E/HS is a rugged industrial-grade Gigabit PoE switch designed for outdoor and demanding environments, delivering high-power Hi-PoE output, fiber connectivity, and reliable performance for critical surveillance systems.
🔹 Key Features
✔️ 3 × Gigabit PoE Ports + 1 × Hi-PoE Port (60W)
✔️ 2 × Gigabit SFP Fiber Uplink Ports
✔️ Supports IEEE 802.3af / at / bt standards
✔️ Up to 60W on Hi-PoE port & 30W per PoE port
✔️ Total PoE Budget: ~65W
✔️ Long Range Mode up to 300 meters
✔️ 6KV surge protection for harsh environments
✔️ PoE watchdog (auto-restart for cameras)
✔️ Port isolation for enhanced network security
🔹 Performance & Network
- Switching Capacity: 12Gbps
- Packet Forwarding Rate: 8.93 Mpps
- MAC Address Table: 2K
- Unmanaged (Plug & Play)
🔹 Industrial Design
✔️ Operating Temperature: -30°C to 65°C
✔️ Fanless metal housing
✔️ DIN-rail / compact installation
✔️ Designed for outdoor & industrial use
🔹 Ideal Applications
PTZ & high-power CCTV cameras
Factories & industrial sites
Outdoor surveillance systems
Construction sites & remote locations
Key Advantage (HS Industrial Series)
This switch is built for extreme conditions, offering:
✔️ Fiber uplink (SFP) for long-distance networking
✔️ Stable performance in harsh environments
✔️ Reliable power delivery for high-demand devices
Why Choose This Switch?
✔️ Industrial-grade durability
✔️ Supports PTZ & AI cameras (Hi-PoE)
✔️ Fiber connectivity for extended networks
✔️ Smart protection features (watchdog + surge protection)
Perfect For
If you need a rugged outdoor PoE switch with fiber uplinks, this model is ideal for industrial CCTV projects and long-distance deployments.
