Hikvision DS-3E1105P-EI/M

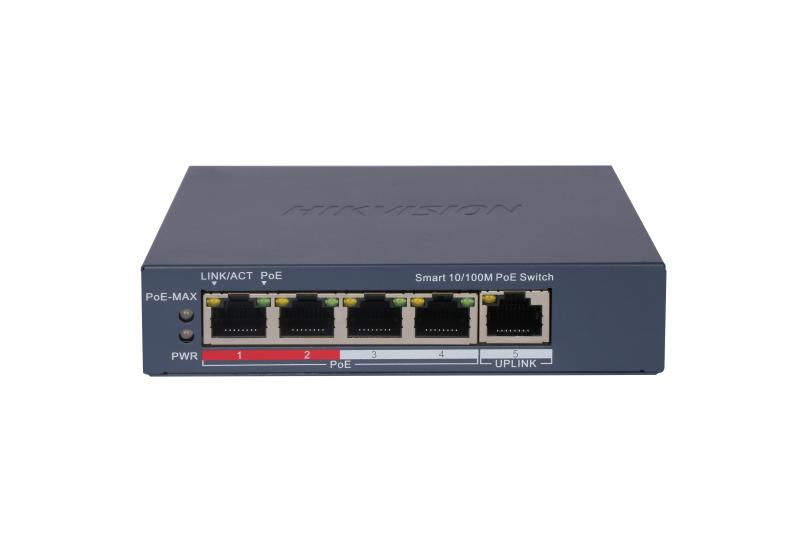

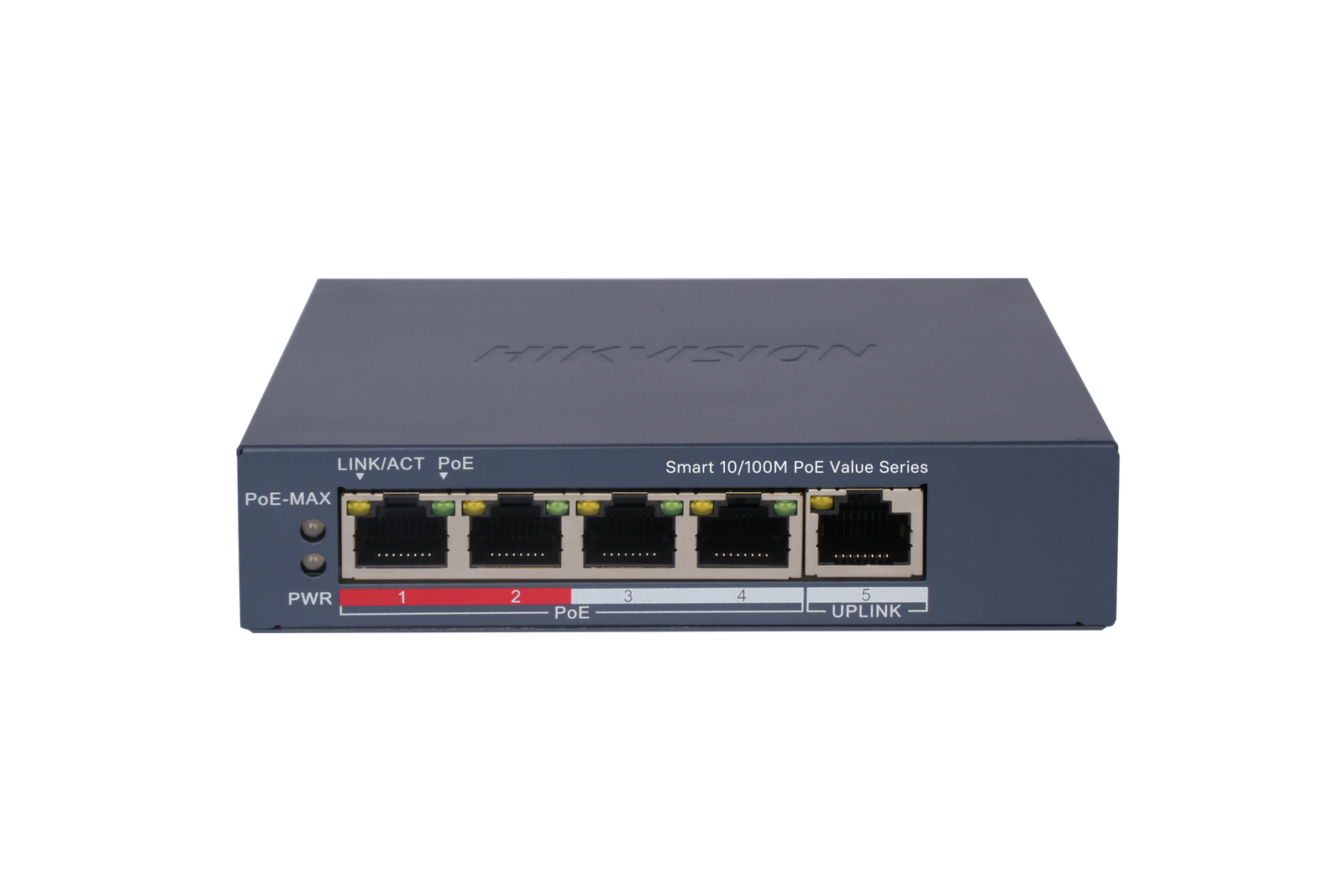

 Hikvision DS-3E1105P-EI/M – 5-Port Smart PoE Switch

Hikvision DS-3E1105P-EI/M is a compact 4-port Fast Ethernet Smart PoE switch designed for professional CCTV surveillance networks, small business installations, offices, retail stores, and other environments that require reliable network connectivity for PoE-powered devices. The switch combines data transmission and Power over Ethernet functionality in one practical device, helping installers create organized IP surveillance networks while reducing the need for separate power connections for compatible cameras.

Designed with surveillance applications in mind, this smart switch provides four 10/100 Mbps PoE ports together with one 10/100 Mbps RJ45 uplink port. This configuration makes it suitable for connecting multiple compatible IP cameras while maintaining an uplink connection to a network video recorder, router, or another network device.

Hikvision DS-3E1105P-EI/M Smart PoE Switch Features

The switch offers a practical combination of PoE connectivity, smart management functions, and a compact form factor. Its four PoE ports allow compatible powered devices to receive electrical power and network data through Ethernet cabling. This can simplify installation, particularly in CCTV projects where cameras may be positioned away from convenient electrical outlets.

With a total PoE power budget of up to 45W, the switch is designed to provide power for compatible PoE devices while supporting the requirements of small surveillance networks. Installers should always calculate the power consumption of connected equipment and ensure that the combined demand remains within the available PoE power budget.

4 Fast Ethernet PoE Ports

The four 10/100 Mbps PoE ports provide connectivity for compatible IP cameras and other supported PoE network devices. By carrying network data and electrical power through Ethernet cabling, the switch can help simplify surveillance installations and reduce the amount of separate power infrastructure required at camera locations.

This configuration is especially useful for small CCTV systems with up to four suitable PoE cameras. It provides a straightforward network foundation for shops, offices, clinics, reception areas, residential projects, warehouses, and other locations requiring a compact surveillance solution.

Dedicated RJ45 Uplink Port

In addition to its four PoE ports, the switch includes a 10/100 Mbps RJ45 uplink port. This connection can be used to integrate the PoE switch with the rest of the network infrastructure, such as a compatible NVR, router, or another Ethernet switch.

Having a dedicated uplink connection makes the network structure easier to organize because the camera connections can remain on the PoE ports while the uplink provides communication with other network equipment.

45W Total PoE Power Budget

The available 45W total PoE power budget makes the switch suitable for compact IP surveillance deployments. Power can be supplied to compatible devices directly through Ethernet connections, helping installers create cleaner and more efficient installations.

Actual power requirements vary depending on the connected cameras or other powered devices. Therefore, the power consumption of each device should be checked before deployment to ensure that the complete system operates within the supported PoE capacity.

Smart PoE Watchdog Functionality

Hikvision DS-3E1105P-EI/M provides smart functionality suitable for surveillance environments, including PoE watchdog support. This feature is particularly useful for CCTV networks because maintaining communication with connected IP cameras is essential for reliable surveillance operation.

PoE watchdog functionality can help identify an unresponsive connected device and assist with restoring its operation by managing the corresponding PoE connection. This can reduce the need for manual intervention and makes network maintenance more convenient, especially when cameras are installed in locations that are difficult to access.

VLAN Support for Surveillance Networks

VLAN functionality provides additional flexibility when organizing network traffic. In surveillance environments, network segmentation can help create a more structured infrastructure and manage communication between connected devices more effectively.

This functionality is valuable for professional installers and businesses that want a cleaner network design rather than simply connecting every device without organization. Combined with the smart management capabilities of the switch, VLAN support contributes to a more practical surveillance networking solution.

Ideal for Small CCTV Installations

The compact port configuration makes this switch particularly suitable for small IP camera systems. Rather than deploying a larger switch with many unused ports, businesses can choose a solution designed around a smaller number of connected devices.

Typical applications include retail shops, small offices, pharmacies, clinics, warehouses, reception areas, residential buildings, and other environments requiring a limited number of PoE surveillance cameras. It can also be useful for expanding an existing CCTV network when additional PoE connections are required in a particular area.

Simple and Organized Installation

Using PoE technology can significantly simplify the physical structure of a surveillance installation. Compatible cameras do not require a separate local power adapter when they receive power from the switch through the Ethernet cable. This reduces cabling complexity and can make both initial installation and future maintenance easier.

The compact design is also beneficial when installation space is limited. The switch can be incorporated into smaller networking and CCTV environments without requiring the space associated with larger enterprise switches.

Reliable Choice for Professional Surveillance

For installers and businesses building a compact IP surveillance network, the Hikvision DS-3E1105P-EI/M offers a useful combination of four Fast Ethernet PoE ports, a dedicated RJ45 uplink, a 45W total PoE power budget, VLAN support, and smart PoE functionality.

These capabilities make it a practical choice for CCTV applications where simple deployment, efficient PoE connectivity, and reliable network organization are important. Whether it is being used in a new surveillance installation or as part of an existing network expansion, the switch provides essential connectivity in a compact format.

Key Features

• 4 × 10/100 Mbps PoE Ethernet ports.
• 1 × 10/100 Mbps RJ45 uplink port.
• Total PoE power budget of up to 45W.
• Smart PoE functionality for surveillance applications.
• PoE watchdog support for connected devices.
• VLAN support for better network organization.
• Suitable for compatible IP surveillance cameras.
• Power and network data through Ethernet cabling.
• Compact design for small CCTV installations.
• Suitable for offices, shops, warehouses, clinics, and other professional environments.
