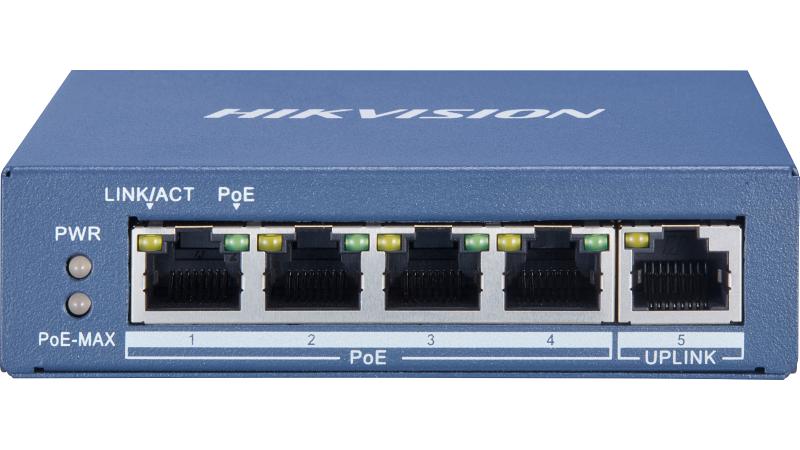

Hikvision DS-3E0505P-E/M(O-STD)
4 Port Gigabit Unmanaged POE
Switch
4 × Gigabit PoE port, 1 × Gigabit RJ45 port IEEE 802.3at/af standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
standard
6 KV surge protection for PoE ports PoE power management
Gigabit network access
Available on backorder
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
Description

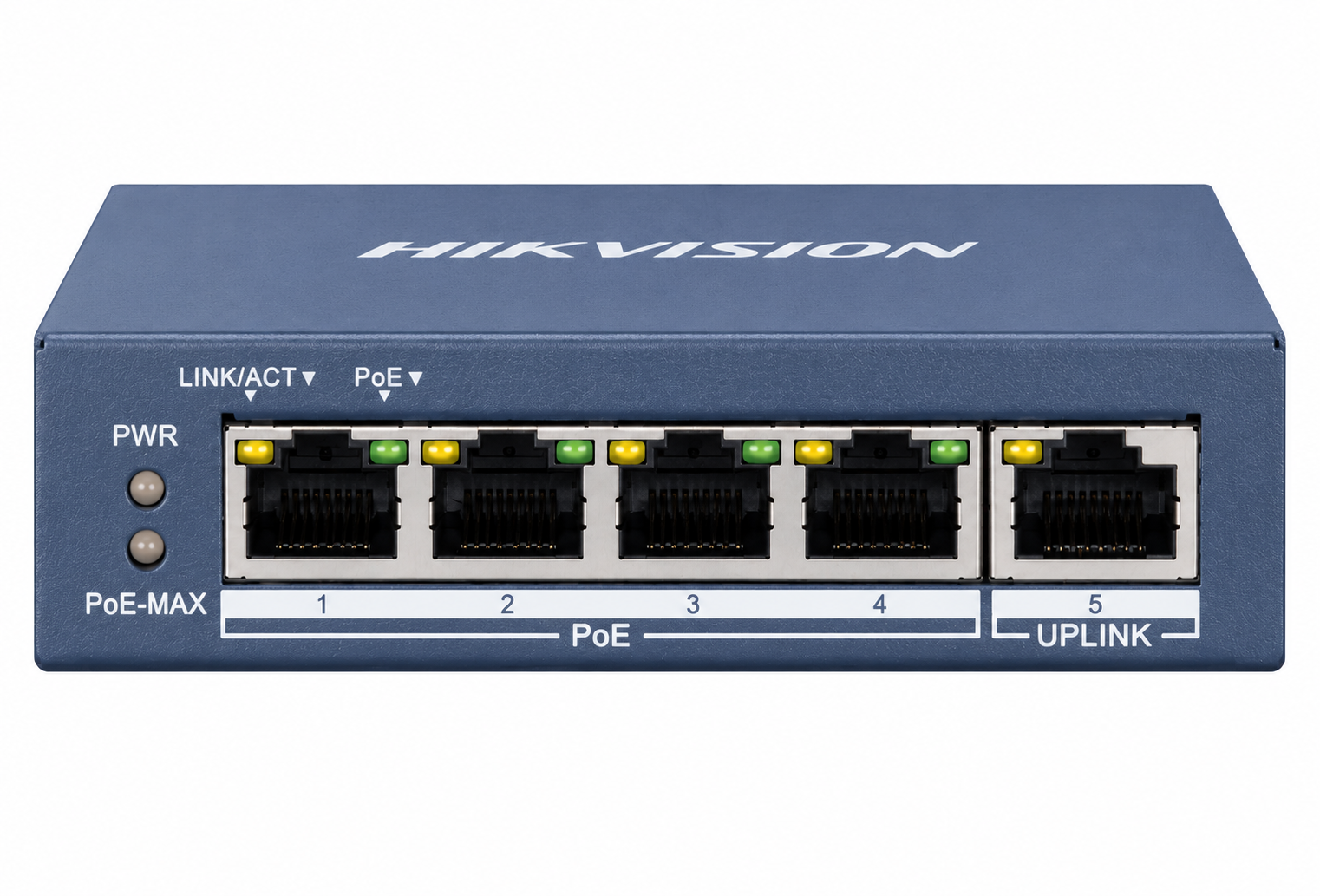

Hikvision DS-3E0505P-E/M(O-STD) 5-Port Gigabit PoE Switch
Compact Gigabit PoE Switch for CCTV & Network Applications
The Hikvision DS-3E0505P-E/M is a compact and efficient Gigabit PoE switch designed for small surveillance systems and network setups, delivering high-speed connectivity and reliable power supply through a single Ethernet cable.
🔹 Key Features
✔️ 4 PoE Ports + 1 Uplink RJ45 Port
✔️ Gigabit Ethernet (10/100/1000 Mbps)
✔️ Supports IEEE 802.3af / at PoE standards
✔️ Up to 30W per PoE port
✔️ Total PoE Budget: ~45W
✔️ Long Range Mode up to 300 meters
✔️ 6KV surge protection
✔️ Fanless design for silent operation
✔️ Durable metal housing
🔹 Performance & Network
- Switching Capacity: 10Gbps
- Packet Forwarding Rate: 7.44 Mpps
- MAC Address Table: 2K
- Plug & Play (no configuration required)
🔹 Ideal Applications
Small CCTV systems
Home and office networks
Small businesses
Shops and retail setups
Key Advantage (E/M Version)
The E/M version offers an optimized PoE power budget, making it ideal for standard IP cameras and efficient installations without excessive power consumption.
Why Choose This Switch?
✔️ High-speed Gigabit connectivity
✔️ Easy installation with no setup required
✔️ Cost-effective and energy efficient
✔️ Reliable Hikvision performance
Perfect For
If you need a small, fast, and reliable PoE switch, this model is a perfect fit for everyday surveillance and networking needs.
