Hikvision DS-3E0505P-E/M(O-STD)

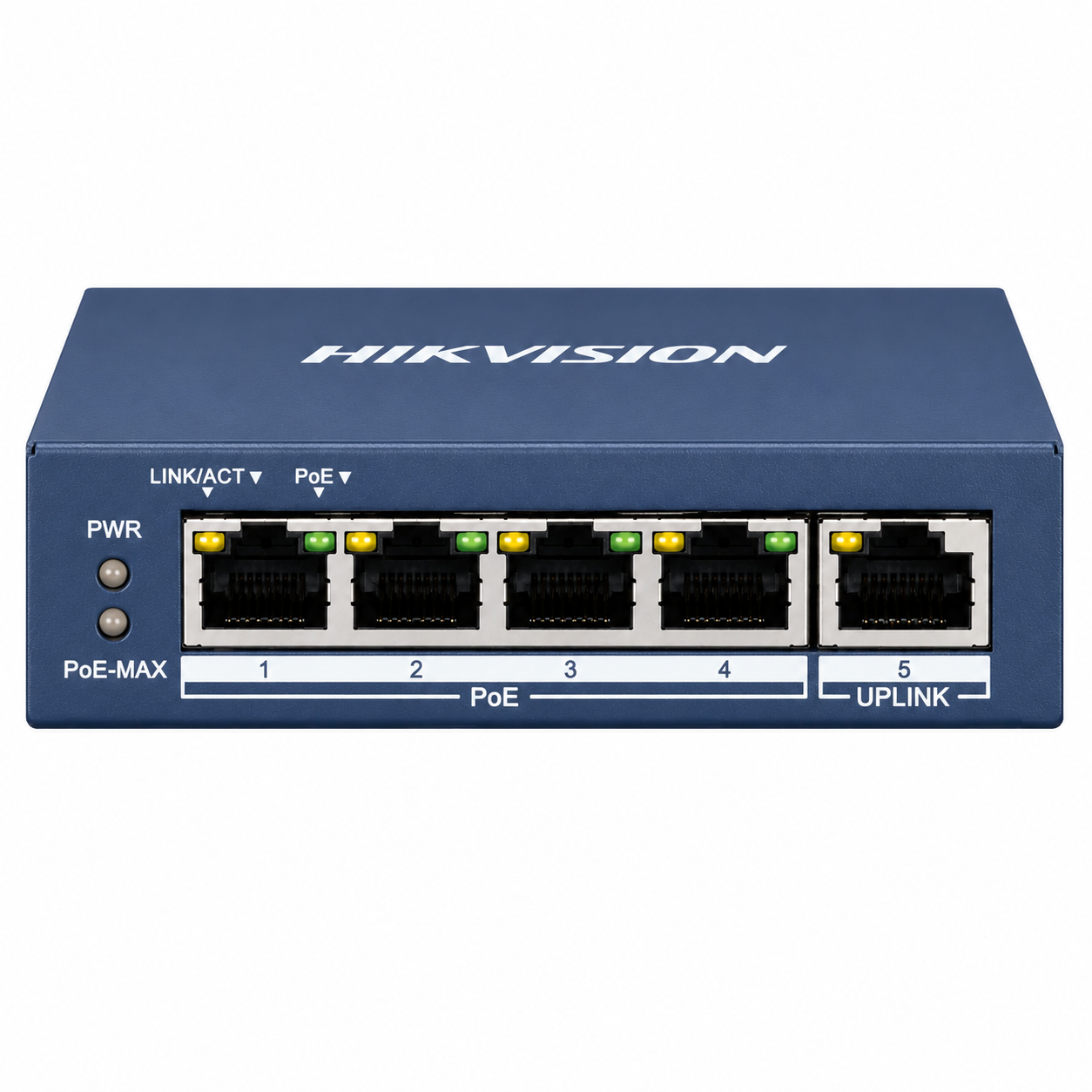

Hikvision DS-3E0505P-E/M(O-STD) 5-Port Gigabit PoE Switch

Hikvision DS-3E0505P-E/M is a compact and reliable 4-port Gigabit unmanaged PoE switch designed for professional IP surveillance systems and small network installations. It combines Gigabit Ethernet connectivity with Power over Ethernet technology, allowing compatible IP cameras and network devices to receive both data and electrical power through a single Ethernet cable. This practical design helps simplify CCTV installations, reduce additional cabling, and create a cleaner and more efficient network infrastructure.

Hikvision DS-3E0505P-E/M Key Features

• 4 Gigabit PoE RJ45 ports for compatible network devices
• 1 Gigabit RJ45 uplink port for network connectivity
• Unmanaged design for simple installation and operation
• Supports IEEE 802.3 networking standards
• Supports IEEE 802.3u and IEEE 802.3x
• Supports IEEE 802.3af and IEEE 802.3at PoE standards
• Gigabit Ethernet connectivity for efficient data transmission
• Suitable for IP cameras and CCTV surveillance networks
• Compact design suitable for small installations
• Convenient plug-and-play network deployment

Gigabit Ethernet Performance

The switch provides Gigabit Ethernet connectivity to support reliable network communication between connected equipment. This makes it particularly useful in modern IP surveillance installations where cameras continuously transmit video data to an NVR or other network equipment. Gigabit connectivity provides the bandwidth needed to handle multiple connected devices efficiently while maintaining stable communication throughout the surveillance network.

With four Gigabit PoE ports available, installers can connect compatible IP cameras directly to the switch. The additional Gigabit RJ45 uplink port can connect the switch to an NVR, router, another network switch, or existing network infrastructure. This straightforward configuration makes the unit suitable for shops, offices, small businesses, warehouses, reception areas, and other locations requiring an organized security network.

Reliable PoE Connectivity

One of the main advantages of the Hikvision DS-3E0505P-E/M is integrated Power over Ethernet technology. PoE enables compatible devices to receive network data and electrical power through the same Ethernet cable. As a result, installers can reduce the need for separate electrical adapters near every camera and simplify the overall installation process.

The switch supports standard PoE technologies including IEEE 802.3af and IEEE 802.3at. This provides compatibility with many commonly used PoE network devices. For CCTV projects, this capability can help installers create a more organized infrastructure while reducing the amount of additional power wiring required around the installation site.

Ideal for CCTV Systems

This switch is particularly useful for IP video surveillance applications. Modern network cameras require dependable communication with recording and monitoring equipment, and a suitable PoE switch can provide both connectivity and centralized power distribution. Its four PoE interfaces make the unit a convenient choice for smaller camera systems where a large enterprise switch would be unnecessary.

Users can connect compatible Hikvision IP cameras to the PoE ports while using the Gigabit uplink interface to establish communication with the main network. This arrangement creates a simple and organized topology that can make installation, troubleshooting, and future maintenance easier for technicians.

Simple Unmanaged Operation

Because the device is an unmanaged switch, it does not require complicated configuration for standard deployment. This plug-and-play approach is useful for installers and businesses looking for straightforward network connectivity without the additional administration associated with managed switches.

Once compatible devices are connected correctly, the switch can become part of the network infrastructure with minimal setup. This makes it a practical option for small surveillance systems, branch offices, retail stores, residential security projects, and similar environments where reliability and ease of installation are important considerations.

Compact Network Solution

The compact construction makes this model suitable for installations where available space may be limited. Instead of deploying a larger switch with many unused interfaces, businesses can select a smaller device that provides the essential ports needed for a focused CCTV project. This can help keep network cabinets and surveillance areas more organized.

Its combination of Gigabit Ethernet and PoE also helps reduce installation complexity. A single Ethernet connection can handle data and power for compatible PoE equipment, resulting in fewer cables and a cleaner installation compared with systems requiring independent power connections for every device.

Business and Security Applications

The Hikvision DS-3E0505P-E/M can be used across different surveillance environments, including offices, shops, small warehouses, clinics, educational facilities, residential projects, and commercial locations. It is especially appropriate when a project requires several PoE cameras connected to a reliable Gigabit network without advanced switch management requirements.

For installers, the combination of four PoE ports and a dedicated Gigabit uplink provides a practical layout for small IP camera systems. For end users, the straightforward design makes the network easier to understand and maintain while still delivering the essential connectivity required for modern surveillance equipment.

Why Choose This Hikvision Switch

This model offers a useful combination of Gigabit networking, PoE functionality, compact construction, and straightforward operation. It can help reduce installation complexity while providing a dependable connection point for compatible security cameras and network devices. Whether deployed in a new surveillance project or added to an existing network, it provides a practical foundation for smaller IP CCTV installations.

Explore more security and surveillance solutions from Smart Land Technology to build a complete CCTV infrastructure. For additional manufacturer information, specifications, and Hikvision networking solutions, visit the official Hikvision website.
