Hikvision DS-3E0109P-E/M(B)(O-STD)
8 Port Fast Ethernet Unmanaged
POE Switch
Intelligent PoE Management. When the power supply exceeds the limit, PoE
ports intelligently manage the power supply, which extends the switch
lifetime.
Up to 300 m Long Range PoE Transmission. The distance between IPCs and
switch can reach maximum 300 meters.
4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply
reduces the power loss on cables.
Available on backorder
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
Description

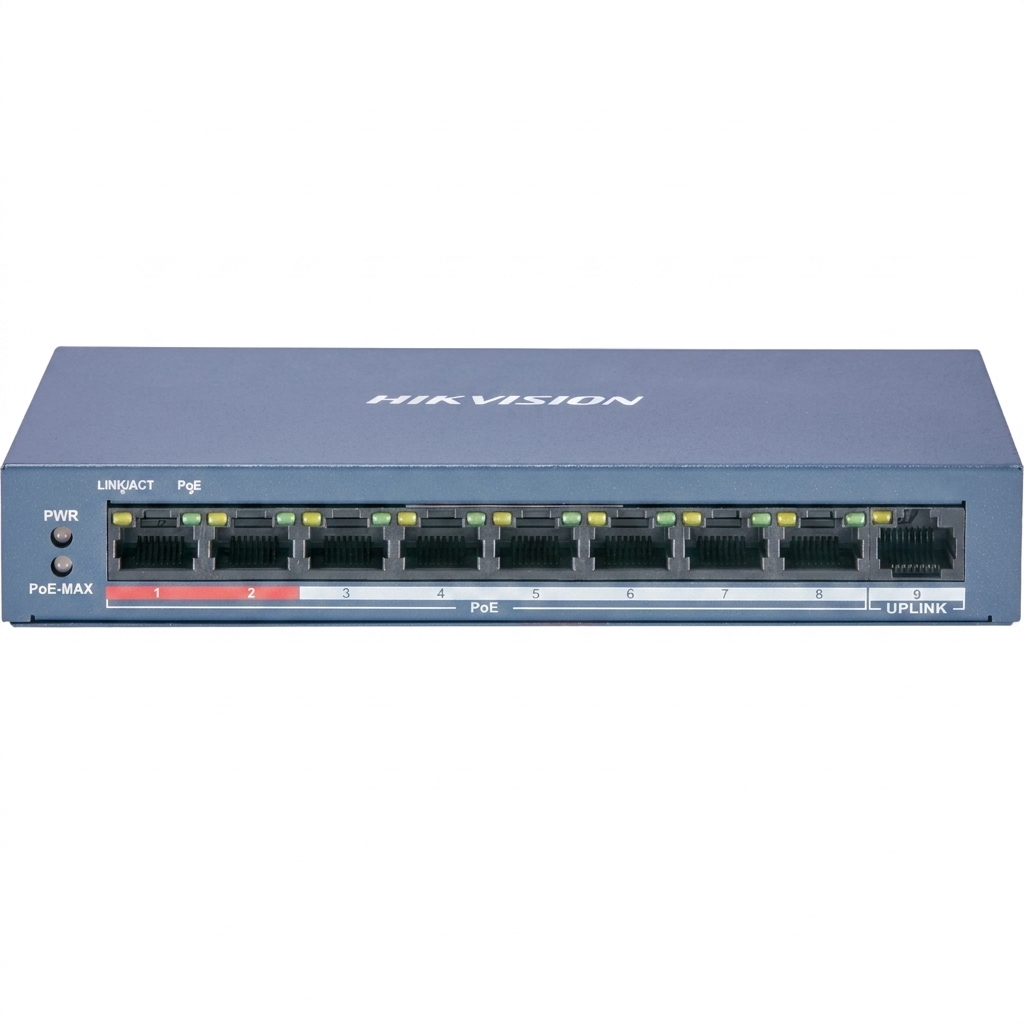

Hikvision DS-3E0109P-E/M(B)(O-STD) 9-Port Fast Ethernet PoE Switch
Compact & Efficient PoE Switch for CCTV Systems
The Hikvision DS-3E0109P-E/M(B) is a cost-effective PoE switch designed for small to medium surveillance systems, delivering stable connectivity and efficient power distribution for IP cameras and network devices.
🔹 Key Features
✔️ 8 PoE Ports + 1 Uplink RJ45 Port
✔️ 10/100 Mbps Fast Ethernet ports
✔️ Supports IEEE 802.3af / at PoE standards
✔️ Up to 30W per PoE port
✔️ Total PoE Budget: ~60W
✔️ Long Range Mode up to 300 meters
✔️ 6KV surge protection
✔️ Fanless design for silent operation
✔️ Durable metal housing
🔹 Performance & Network
- Switching Capacity: 1.6Gbps
- Packet Forwarding Rate: 1.19 Mpps
- MAC Address Table: 2K
- Plug & Play (no configuration required)
🔹 Ideal Applications
Small to medium CCTV systems
Offices and small businesses
Clinics and retail shops
Advanced home networks
Key Advantage (E/M Version)
The E/M version is optimized with a balanced PoE power budget, making it ideal for standard IP cameras and efficient deployments without unnecessary power overhead.
Why Choose This Switch?
✔️ Affordable and reliable solution
✔️ Easy installation with no configuration
✔️ Reduces cabling and power costs
✔️ Stable performance for everyday use
Specifications
